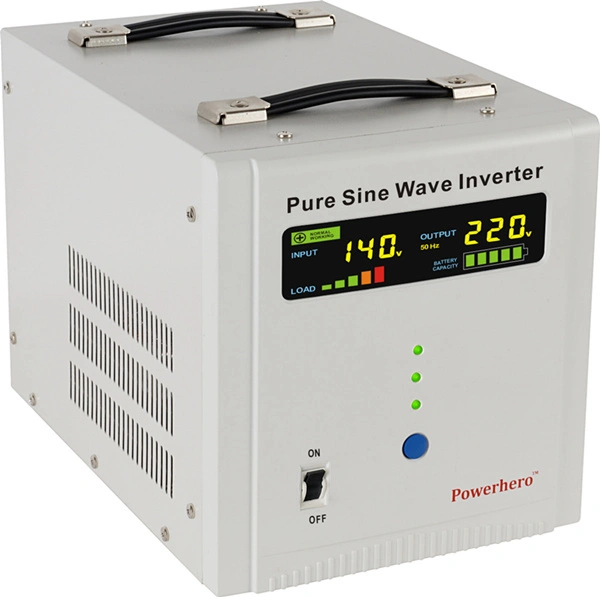

EPSI-2500 pure wave sine inverter

EPSI Series Pure sine wave inverter


Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: EPSI-2500
Output Power: 1800W
AC charging current selected 10A/20A.
NO-loading current less than 1.2A.
Size: 355*220*250mm
Output Frequency: 50HZ/60HZ
LED Display selectable


Packaging & Delivery

Packaging Details:	Export special carton
Delivery Detail:	20days

Features :
With wide AVR range 140-275 Vac gives you stable voltage at mains mode
Big charging current, 3 stage battery charger
A true sine wave with very low harmonic distortion
True C.R.G.O toroidal transformer ,lower static loss, more energy-saving
32-bit high speed MCU control with accurate detection
Smart digital display
Integrated frequency automatic tracking technology, generator compatible

Model		EPSI-500	EPSI-800	EPSI-1000	EPSI-1500	EPSI-2000	EPSI-2500	EPSI-3000
Rated Capacity		500VA	800VA	1000VA	1500VA	2000VA	2500VA	3000VA
Rated Power		300W	500W	700W	1050W	1400W	1800W	2100W
Transformer		C.R.G.O
Interface		LED graphic
Display Status		working & loading & battery
Working Mode		PV(Photovoltaic priority) / AC（AC priority）Optional
Input	Voltage	140~275 Vac
	Frequency	45~65 Hz
Output	Voltage	220Vac ±3% for inverter;190V-245V for avr
	Frequency	50/60 Hz ± 0.3Hz, subject to the main
	Wave Form	Pure sinve wave
	Wave Distortion	≤ 3%
Protection		overload / high temperature / output high voltage / output low voltage / battery low voltage / short circuit / over-charge / over-discharge / reversed polarity(optional)
Transfer Time		≤ 4ms
Battery Voltage		12V DC	12V DC	12V DC	24V DC	24V DC	24V DC	48V DC
Charge Voltage		13.8V±0.5V	13.8V±0.5V	13.8V±0.5V	27.6V±0.6V	27.6V±0.6V	27.6V±0.6V	55V±1V
Low Battery Voltage Limit		10.9V ±0.3V	10.9V ±0.3V	10.9V ±0.3V	21.8V ±0.6V	21.8V ±0.6V	21.8V ±0.6V	42V ±1V
Battery Low Voltage Protection Point		10.2V ±0.3V	10.2V ±0.3V	10.2V ±0.3V	20.5V ±0.6V	20.5V ±0.6V	20.5V ±0.6V	41V ±1V
Charge Current		Max. 10A/15A/20A optional
Cooling System		Yes
Environmental	Operating Temperature	0 - 40 ℃
	Relative Humidity	10%~90% RH, non-condensing
	Storage Temperature	﹣15 - 45 ℃
Packing	Machine Size(mm)	230x145x180		337x146x170		355x220x250
	Qty/Ctn	4	4	2	2	1	1	1
	Carton Size (mm)	785x305x240		415x410x255		395x272x305
	Carton G.W. (kg)	22	26	17.2	19.1	13	14.8	16.1

　Foundeded in 2001, Huizhou Yinghua Electronic Co., LTD. is a professional manufacturer and solution provider of high-quality automatic voltage stabilizers ranging from 500VA to 20kVA, Solar integrated inverters and UPS ranging from 500VA to 10kVA, transformers and converters. With brand  Powerhero and experienced workers, we turn out 50,000 units monthly. Yinghua has been a pioneer of technology since we explored the key technology of aluminum transformer production and we also became the first aluminum transformer supplier. We invested a lot on our R&D team which has designed high performance MCU controlled circuit.
