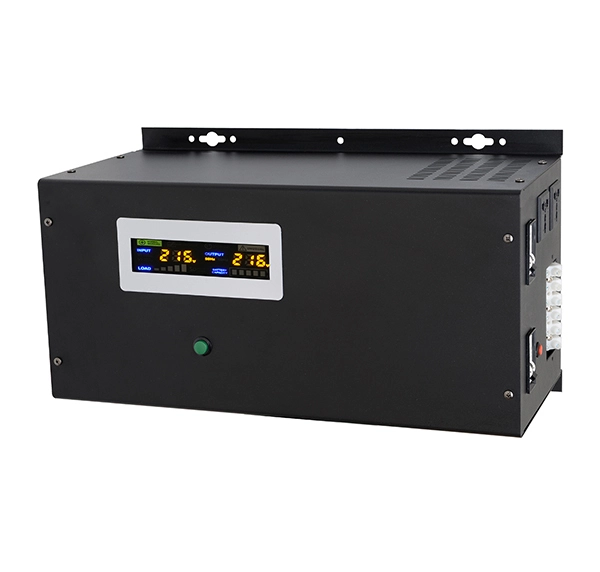

SME pure sine wave inverter 3000

SME Series Pure sine wave inverter

Huizhou Yinghua Electronic Co., LTD always stands at the top of being creative. We are the first toroidal inverter inventor which using the toroidal transformers technology and truly aluminum transformer innovator. We have developed 3-phase hybrid automatic voltage regulator which reach ±3% precision through relay and servo technology combination.

Quick Details
* Place of Origin: Guangdong, China (Mainland)
* Brand Name: Powerhero
* Model Number: SME3000
* Output Power: 3000W
* AC charging current selected 20A/40A
* NO-loading current less than 2.5A
* Size: 580*330*275mm
* Type: DC/AC Inverters
* Output Frequency: 50HZ/60HZ
Packaging & Delivery
Packaging Details: Export special carton
Delivery Detail: 20 days

   Pure sine wave inverter can switch DC electric power into AC power. It also called UPS (Uninterrupted Power Supply). When AC power-down, inverter can contain power supply with DC power and ensure devices normal operation.
  Pure sine wave inverter is widely used in various equipments, such as communication system, aviation, home application; emergency system, fire protection system, vehicle-mounted, boat-mounted, and stage devices. Pure sine wave inverter also can form an EPS (Emergency Power Supply) system.
  Maintenance considerations are as follows:
1、Operating inverter according to users manuals.
2、Switch off when not in use.
3、Put inverter in a safe place to avoid shock.
4、Don’t put anything on the top of inverter
5、No excessive sun exposure.
6、Don’t watering inverter.







Features:
Powerful 300% surge power
Big charging current, 3 stage battery charger
A true sine wave with very low harmonic distortion
True C.R.G.O toroidal transformer, lower static loss, more energy-saving
32-bit high speed MCU control with accurate detection

Model		SME1000	SME1200	SME1400	SME1600	SME2100	SME2400	SME3000	SME3500
Rated Power		1000W	1200W	1400W	1600W	2100W	2400W	3000W	3500W
Surge Protection Power		3000W	3600W	4200W	4800W	6300W	7200W	9000W	10500W
NO-LOADING Current (DC mode)		<2.5A
Transformer		C.R.G.O
Interface		LED graphic
Display Status		working & loading & battery
Input	Voltage	140~275 Vac
	Frequency	45~65 Hz
Output	Voltage	220Vac ±1% for inverter; 220Vac ±8% for regulator
	Frequency	50/60 Hz ± 0.5Hz, subject to the main
	Wave form	Pure sinve wave
	Wave distortion	≤ 3%
Protection		Overload, High temperature, Output high/low voltage, Battery low voltage, Short circuit, Over-charge, over-discharge
Transfer Time		≤ 6ms
Battery Voltage		12V DC	12V DC	12V DC	12V DC	24V DC	24V DC	24V DC	24V DC
Charge Voltage		13.8V±0.5V	13.8V±0.5V	13.8V±0.5V	13.8V±0.5V	27.6V±0.5V	27.6V±0.5V	27.6V±0.5V	27.6V±0.5V
Low Battery Voltage Limit		11V ±0.5V	11V ±0.5V	11V ±0.5V	11V ±0.5V	22V ±1V	22V ±1V	22V ±1V	22V ±1V
Battery Low Voltage Protection Point		10.5V ±0.5V	10.5V ±0.5V	10.5V ±0.5V	10.5V ±0.5V	21V ±1V	21V ±1V	21V ±1V	21V ±1V
Charge Current		20A /40A selectable
Charge Mode		3-stage: bulk, boost, float
Cooling system		Yes
Environmental	Operating temperature	0 - 40 ℃
	Relative humidity	10%~90% RH, non-condensing
	Storage temperature	﹣15 - 45 ℃
Packing	Machine Size (mm)	507*330*275
	Qty/ Ctn	1
	Carton Size (mm)	580*345*290
