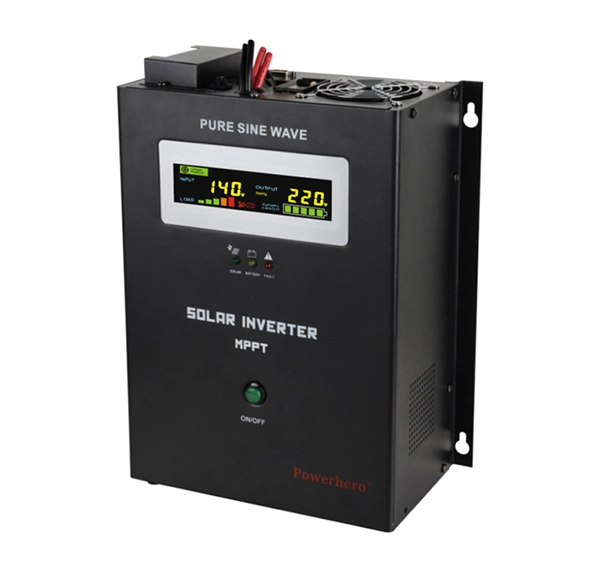

WS Series Solar Inverters WSKE-2500
Huizhou Yinghua Electronic Co., LTD always stands at the top of being creative. We are the first toroidal inverter inventor which using the toroidal transformers technology and truly aluminum transformer innovator. We have developed 3-phase hybrid automatic voltage regulator which reach ±3% precision through relay and servo technology combination.
FOB Guangzhou/Shenzhen; EXW available
Quick Details
Place Of Origin: Guangdong, China (Mainland)
Brand Name: Powerhero
Model Number: WSKE-2500VA
Output Power: 1800W
Output Type: Single
Size: 384x219x 275
Weight: 15.8Kgs
Input Voltage: 24VDC
Output Voltage: 110V / 120V / 220V / 230V / 240V optional
Type: DC / AC Inverters
Output Frequency: 50Hz / 60Hz
Color: Black
Case: Vertical type
Display: LED Graphic
Packaging & Delivery
| Packaging Details: |
Machine Size(LxWxH mm): 384 x 219 x 275 Carton Size(LxWxH mm): 455x 280x 350 |
| Delivery Detail: | 7- 30 days |
Specifications:
Solar Inverter
Power Capacity: 1800W, 24VDC
With MPPT Charger Controller: 12V / 20A / 30A
With AC charger
Output: 220V, 50H / 60Hz
Applications:
Television, refrigerator, air condition, computer,electric fan, lighting equipment, test equipment, and etc.
Powerhero pure sinewave solar inverter, which integrated solarcharger controller with Max Power Point Trackig function, high charging efficiency, low static loss.
Description:
WSKE series solar inverter provides pure sine wave green power for commercial, household and industrial applications. Capacity Availabilityy range from 500VA to 2500VA, it can power most common electrical appliances in these fields. Unique toroidal transformer technology, makeour inverter a very low exciting current which is the best application forsolar system. Its individual AVR function make your appliance work very smootheven if mains power is not stable.
| Model | WSKE-500 | WSKE-800 | WSKE-1000 | WSKE-1500 | WSKE-2000 | WSKE-2500 | |
| Rated Power | 300W | 500W | 700W | 1050W | 1400W | 1800W | |
| Battery Voltage | 12Vdc | 12Vdc | 12Vdc | 24Vdc | 24Vdc | 24Vdc | |
| Working Mode | PV(Photovoltaic priority) / AC(AC priority)optional | ||||||
| PV | Input Voltage Range | 12Vdc- 25Vdc | 24Vdc- 50Vdc | ||||
| Max. Charge Current | 10A / 20A / 30A / 40A / 60A optional | ||||||
| Max. Conversion Efficiency | 98% | ||||||
| Display | Panel Indicator Light | LED graphic screen + LED lights | |||||
| Mains status(Optional) | Input Voltage Range | 140Vac~ 275Vac | |||||
| Input Frequency Range | 45- 65 Hz (automatically transfer to invert mode when overfrequency) | ||||||
| Output Voltage Range | 190Vac~ 245Vac | ||||||
| Input PF.(AC/DC) | 98% | ||||||
| Efficiency | mains mode≥ 96% | ||||||
| Charge Current | 10A | ||||||
| Mains Overload | warning until decrease load | ||||||
| Short Circuit | yes | ||||||
| Inverter Output | Inverter Output Voltage | 220V±3% | |||||
| Output Frequency | 50 Hz / 60Hz ± 0.3Hz frequency adaptive | ||||||
| Output Power Factor | ≥0.8 | ||||||
| Wave Form Distortion | linear load≤ 3% | ||||||
| PV-AC Transfer Time | 4Ms typical value Max.6 Ms | ||||||
| Efficiency | invert mode≥ 80% | ||||||
| Inverter Overload | 110%- 130% shutdown at 30s,130%- 150% shutdown at 3s | ||||||
| Short Circuit | system automatically shut down | ||||||
| Alarm | Mains Abnormal | 1 time / 1S, silence auto after 5S | |||||
| Low Battery | 1 time /1S and flash battery last grid | ||||||
| Overload | 1 time / 1S and display "overload" grid | ||||||
| Communication Interface | RS232 (optional) | ||||||
| Others | Output Sockets | universal sockets / customized | |||||
| Surge Protection | optional | ||||||
| Ambient Temperature | 0°C~ 40°C | ||||||
| Ambient Humidity | 10%~ 90% (non condensed) | ||||||
| Noise | ≤ 50dB | ||||||
| Machine Dimension | 384x219x275 | ||||||
| Packing Dimension(MM) | 455 x280x 350 | ||||||
| Qty/Ctn | 1 | ||||||
| Packing G.W.(kg) | 7.80 | 8.40 | 9.80 | 10.80 | 14.00 | 15.80 | |
