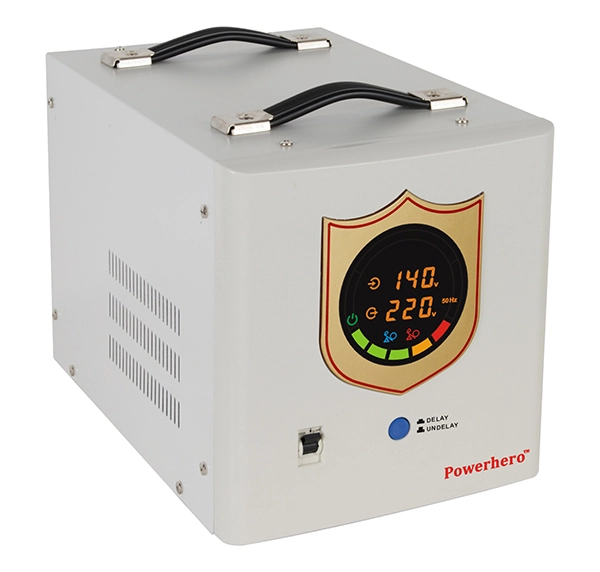

THC Hybrid Servo Stabilizer THC -3000

Model No.: SHC-3000
Brand Name: Powerhero
MOQ: 50 pcs
Payment Terms: 30% deposit then 70% balance before loading
Date Of Delivery: 15~ 20days after deposit
Place Of Origin: Huizhou, Guangdong Province, China

Feature:
Compatible servo motor type & relay type AVR features
With servo motor type AVR high precision while without the instant high voltage surge
With relay type AVR quick response reach high precision
Authentic zero crossing technology
Taylor made C.R.G.O transformers
High performance and high speed MCU control
Display are optional

Usage:
Air Conditioners, Water Pumps, TVs home appliances.

Model	THC 110v-270v	THC-1000	THC-1500	THC-2000	THC-3000	THC-5000	THC-8000	THC-10000
Rated Capacity		1000VA	1500VA	2000VA	3000VA	5000VA	8000VA	10000VA
Phase		Single
Transformer		C.R.G.O. toroidal transformer
Indicator		LED graphic
Display Status		working and loading
Output	Frequency	50 / 60 Hz
	Voltage	110 / 120 / 220 / 230 / 240 Vac optional
	Precision	± 1%- 3%
Protection		overload / high temperature / high voltage / low voltage / short circuit
Delay Function		delay / un delay (180 / 6 seconds selectable)
Efficiency		98%
Cooling System		Smart cooling for 3000Va and above
Environmental	Operating Temperature	0 - 40 ℃
	Relative Humidity	10%~ 102% RH, non condensing
	Storage Temperature	﹣15 - 45 ℃
Appearance	Size (Max. mm)	240x146x180			355x220x250
	N.W. (kg) SHC	3.90	4.30	4.60	7.7	8.7	11.7	13.7
	N.W. (kg) THC	4.40	4.80	5.10	8.2	9.2	12.2	14.2
Packing	Qty/Ctn	4			1
	Carton Size (mm)	785x305x240			395x272x305
	Carton G.W. (kg) SHC	17.60	19.20	20.40	8.50	9.50	12.50	14.50
	Carton G.W. (kg) THC	19.60	21.20	22.40	9.00	10.00	13.00	15.00
